Espresso Puck Screen Filter Paper 51/53/58mm – Reusable Portafilter Basket Screens

A puck screen sits between your tamped coffee bed and the group head shower screen. It's a small addition with outsized benefits: cleaner extractions, easier basket cleaning, and reduced backflush frequency. The Espresso Puck Screen Filter from COFFEECONCEPT is a reusable, precision-mesh screen available in 51mm, 53mm, and 58mm diameters — sized for the full range of home and prosumer espresso machines.

What Does a Puck Screen Actually Do?

When espresso extracts, the group head pressurizes water at 9 bars and forces it through the coffee puck at high velocity. Without a screen, this first impact of high-pressure water creates micro-channels in the puck surface — contributing to channeling and uneven extraction before the puck has time to saturate and resist evenly.

The puck screen distributes the initial water impact across its mesh surface, spreading pressure evenly across the entire puck face before extraction begins. This results in:

• More even saturation of the full puck surface before pressure peaks
• Reduced surface channeling from direct high-pressure water impact
• Cleaner group head screens — the puck screen catches coffee fines before they reach the shower screen
• Easier basket cleaning — lift the screen, and the puck comes with it as a clean disc

Key Features

Precision Double-Layer Mesh

The 0.8mm precision mesh is sized to distribute water pressure without restricting flow rate. The double-layer construction (where applicable) adds rigidity so the screen doesn't flex or bow under 9-bar pressure — maintaining flat contact with the puck surface throughout extraction.

Universal Sizing: 51mm / 53mm / 58mm

Available in the three most common home espresso basket diameters. The screen sits flush inside the basket, seating against the basket rim without gaps that would allow water bypass. Select your basket diameter precisely — a screen that's 1mm too small will allow edge channeling.

Reusable & Easy to Clean

Unlike paper filter discs, this screen is designed for repeated use. After each shot, the screen typically comes out with the spent puck on top. Rinse under running water, use a brush to clear any trapped fines, and it's ready for the next shot. Weekly soaking in espresso machine cleaner solution maintains the mesh openings.

Food-Grade Stainless Steel

The mesh and frame are food-grade stainless steel — non-reactive with coffee acids, resistant to corrosion, and safe for long-term food contact use. No coatings that wear off, no materials that leach into your espresso.

Installation & Use

1. Dose and tamp your coffee normally

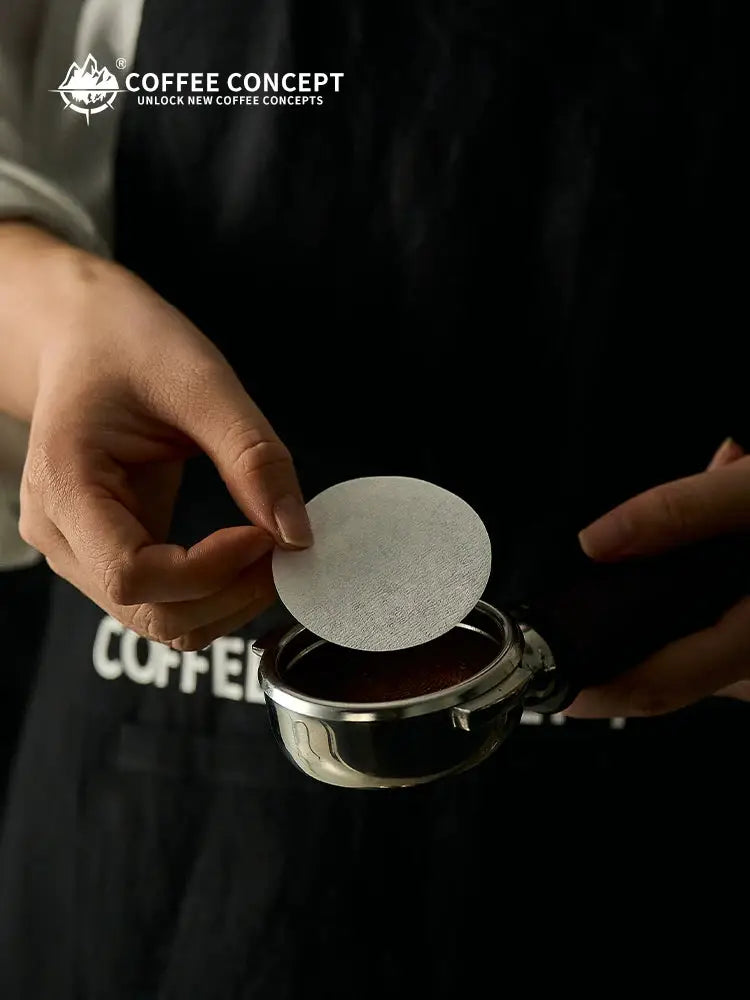

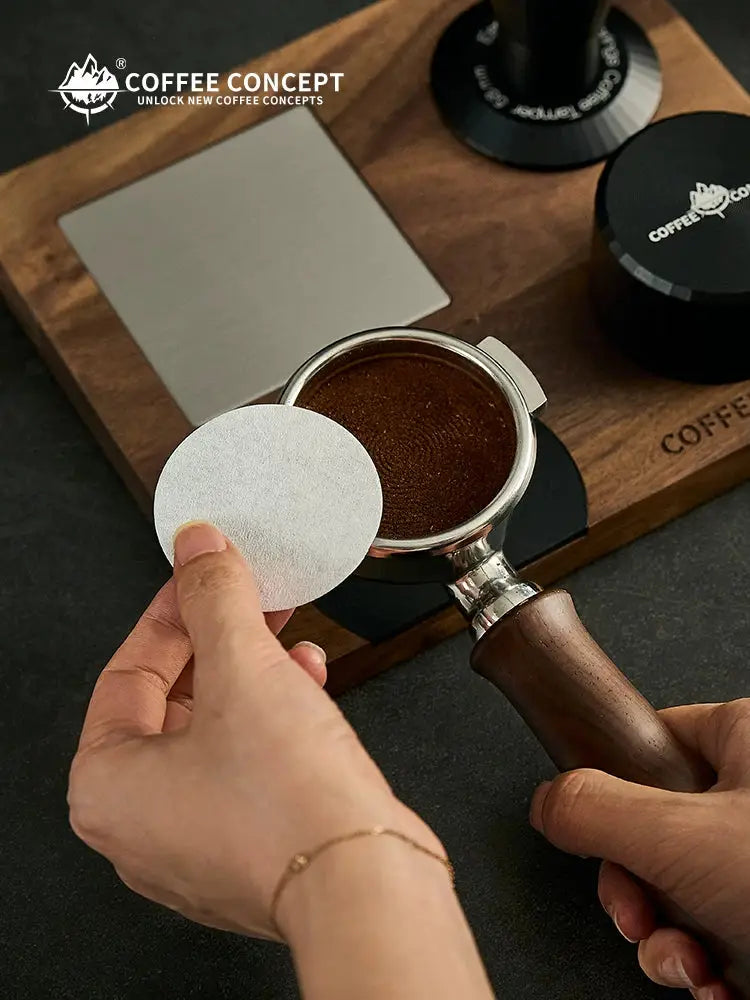

2. Place the puck screen on top of the tamped puck, centered
3. Lock the portafilter into the group head as usual
4. Pull the shot — no adjustment to grind, dose, or time needed (the screen has negligible resistance)
5. After the shot: the screen typically exits with the puck when you knock out
6. Rinse screen under running water, brush lightly, dry, reuse

Will a Puck Screen Change My Extraction?

For most home setups, the change is subtle: slightly more even extraction, marginally cleaner cups on machines with older group head screens. The bigger benefit is operational — the puck screen dramatically extends the time between required group head deep cleans, and makes post-shot cleanup faster and cleaner.

If you're experiencing significant channeling, a puck screen alone won't solve the root cause. Address distribution (WDT tool) and tamping consistency (constant force tamper) first — the puck screen is the finishing layer that keeps a well-prepared puck performing consistently.

Compatibility

Frequently Asked Questions

How often do I need to replace the puck screen?

With proper cleaning, a quality stainless steel puck screen lasts for hundreds of shots. Replace when the mesh shows visible deformation, corrosion, or when fine grounds pass through the mesh in significant volume (indicating mesh damage).

Does the puck screen affect espresso flow rate?

At standard espresso grind settings, the mesh resistance is negligible — under 0.5 bar additional resistance. You should not need to adjust grind or dose for the puck screen. If you notice significantly longer extraction time, check that the correct size screen is installed and that the mesh is not clogged.

Should I use a puck screen with a pressurized basket?

Pressurized baskets (common on entry-level machines) already regulate pressure internally. A puck screen is most effective with unpressurized (standard) baskets at full extraction pressure. On pressurized baskets, the screen provides less benefit.

What's in the Box

• Espresso Puck Screen Filter × 1 (choose 51mm / 53mm / 58mm)

Clean extractions, cleaner baskets. Explore our full range of espresso accessories at COFFEECONCEPT.
